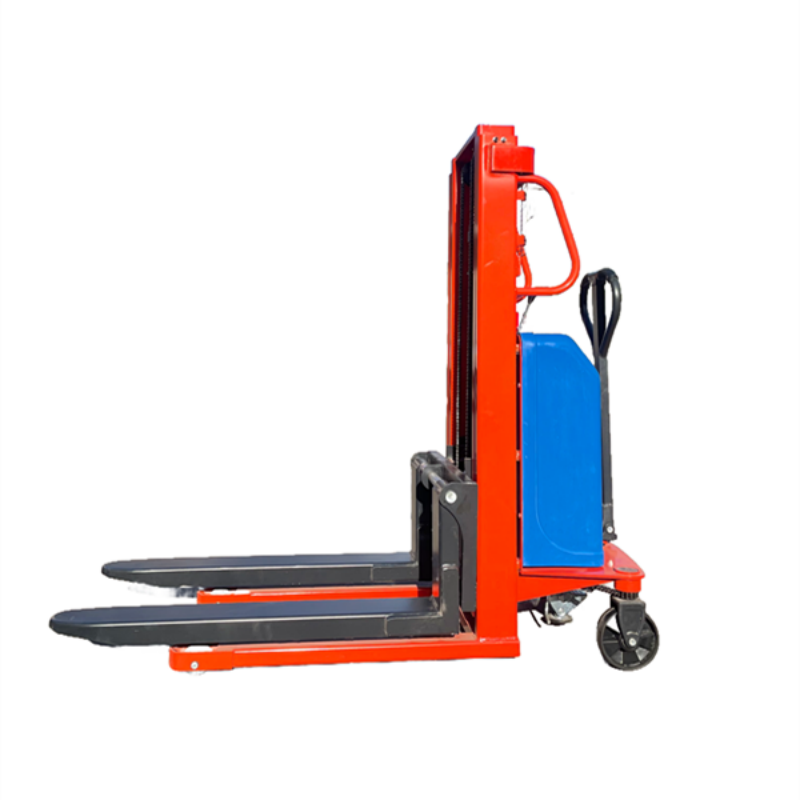

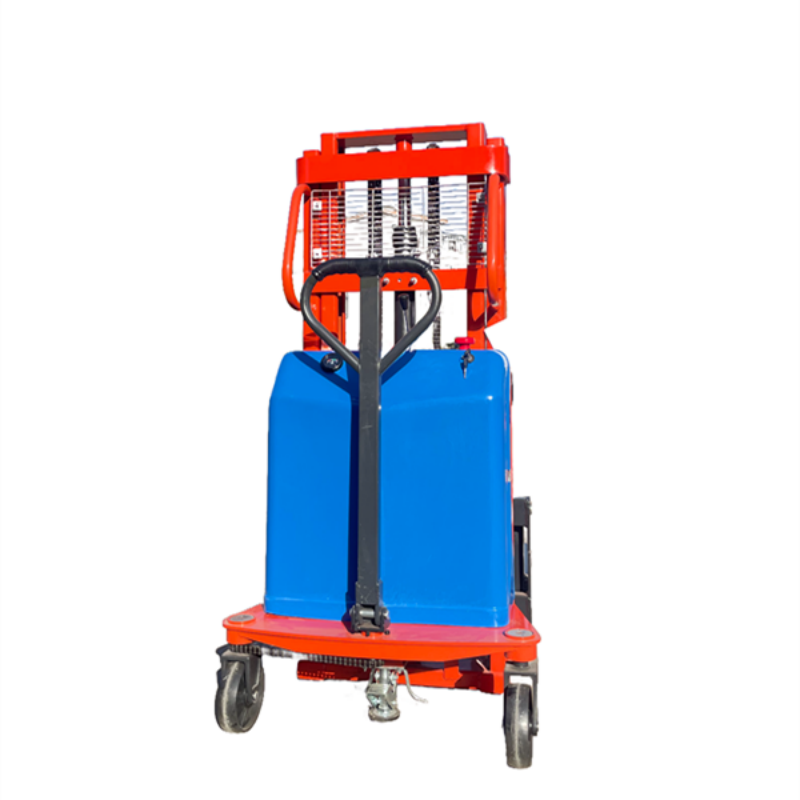

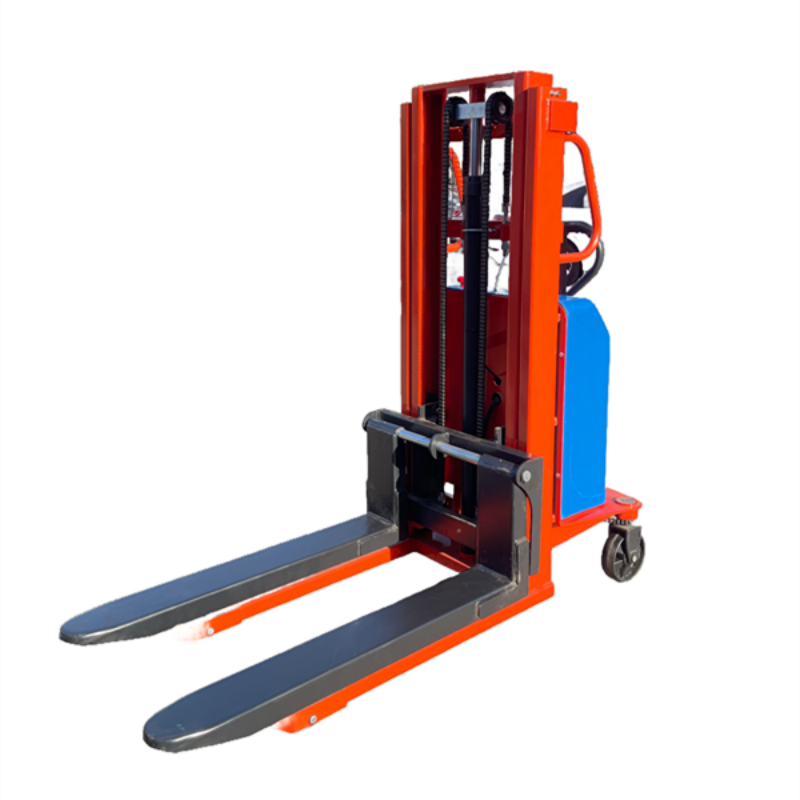

Name: Semi-electric & Electric Pallet Stackers
Rating: 5 (99 reviews)

Home / Products / Electric Stacker / Semi-electric & Electric Pallet Stackers

Product Category

Product Details
FAQ
Contact Us

MODEL				CD-D20G

CHARACTERISTIC	1.1	POWER TYPE		Manual
	1.2	OPERATION TYPE		Pedestrian
	1.3	RATED LOAD CAPACITY	kg	1500	2000
	1.4	LOAD CENTER	mm	500
WEIGHT	2.1	WEIGHT WITH BATTERY	kg	320/360/390/450/490	360/390/420/450/480
WHEEL	3.1	MATERIAL		Nylon
	3.2	REAR WHEEL		Φ80×70
	3.3	FRONT WHEEL		Φ180×50
	3.4	REAR WHEELBASE	mm	530
	3.5	FRONT WHEELBASE	mm	760
SIZE	4.1	LIFTING HEIGHT	mm	1600/2000/2500/3000/3500	1600/2000/2500/3000/3500
	4.2	OVERALL LENGTH	mm	1900
	4.3	OVERALL HEIGHT (MAST LOWERED)	mm	2080/1580/1830/2080/2280
	4.4	EXTENSION HEIGHT (MAX. MAST HEIGHT)	mm	2080/2580/3080/3580/4080
	4.5	OVERALL WIDTH	mm	800
	4.6	FORK SIZE	mm	701651070
	4.7	FORK OUTER WIDTH	mm	720
	4.8	MIN. GROUND CLEARANCE	mm	25
	4.9	WORKING AISLE (800*1200 PALLET, MAST LOWERED)	mm	2175
	4.1	WORKING AISLE (1000*1200 PALLET, MAST LOWERED)	mm	2230
	4.11	TURNING RADIUS	mm	1350
PERFORMANCE	5.1	LIFTING SPEED (LADEN/UNLADEN)	m/s	0.11/0.148	0.9/0.12
PERFORMANCE	5.2	FALLING SPEED (LADEN/UNLADEN)	m/s	0.125/0.117	0.130/0.110
MOTOR	6.1	LIFTING MOTOR	Kw	1.6
MOTOR	6.2	BATTERY VOLTAGE/CAPACITY	Kw	12V/135Ah
