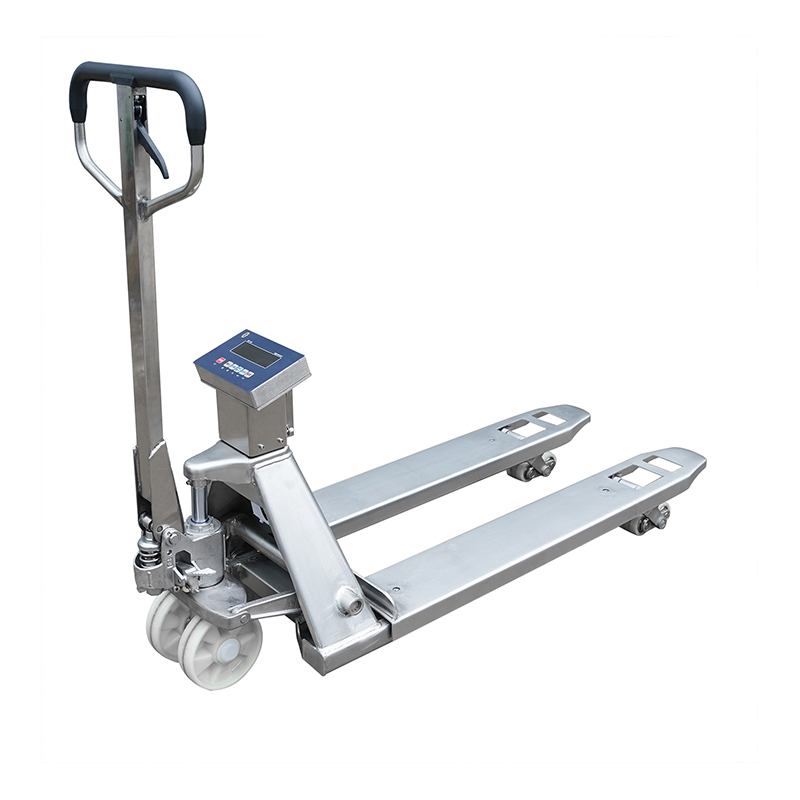

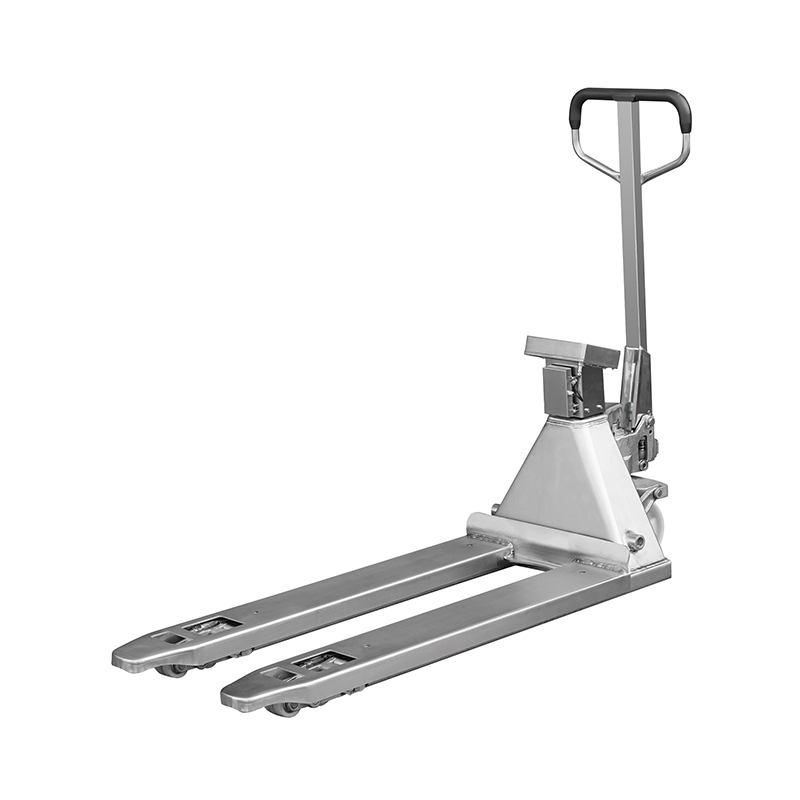

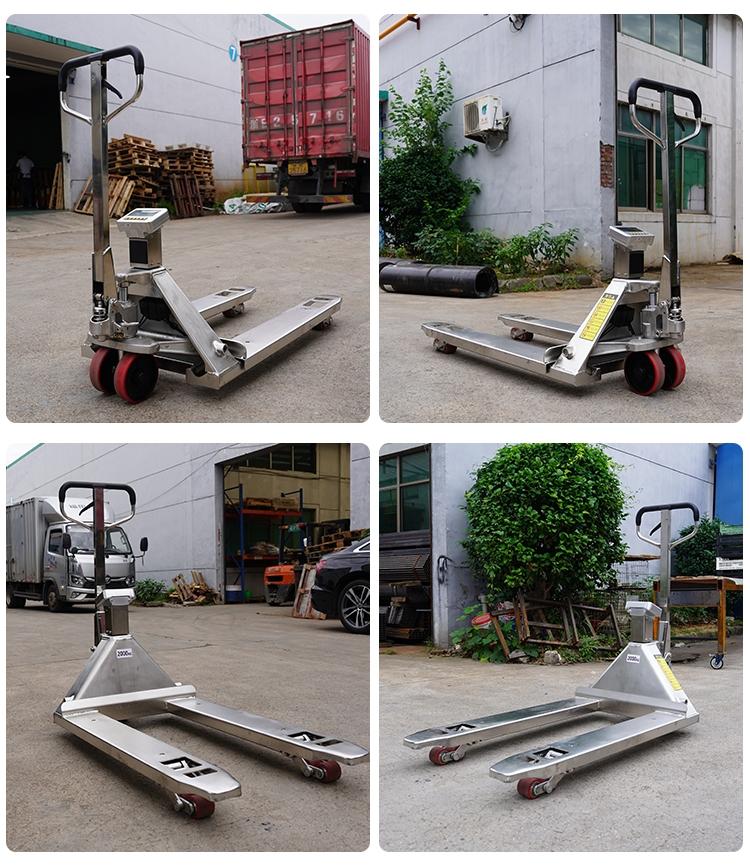

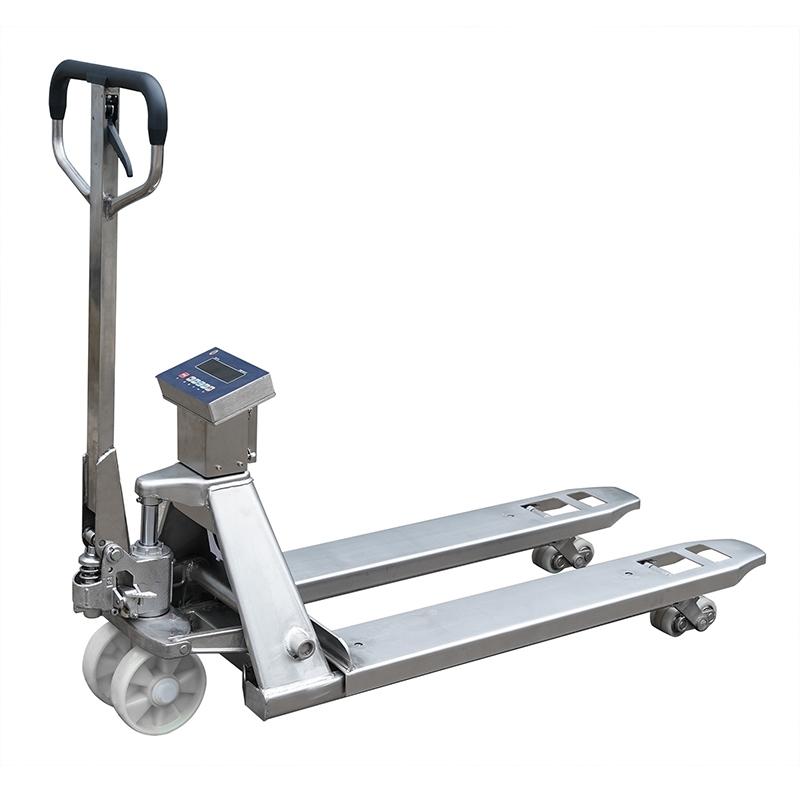

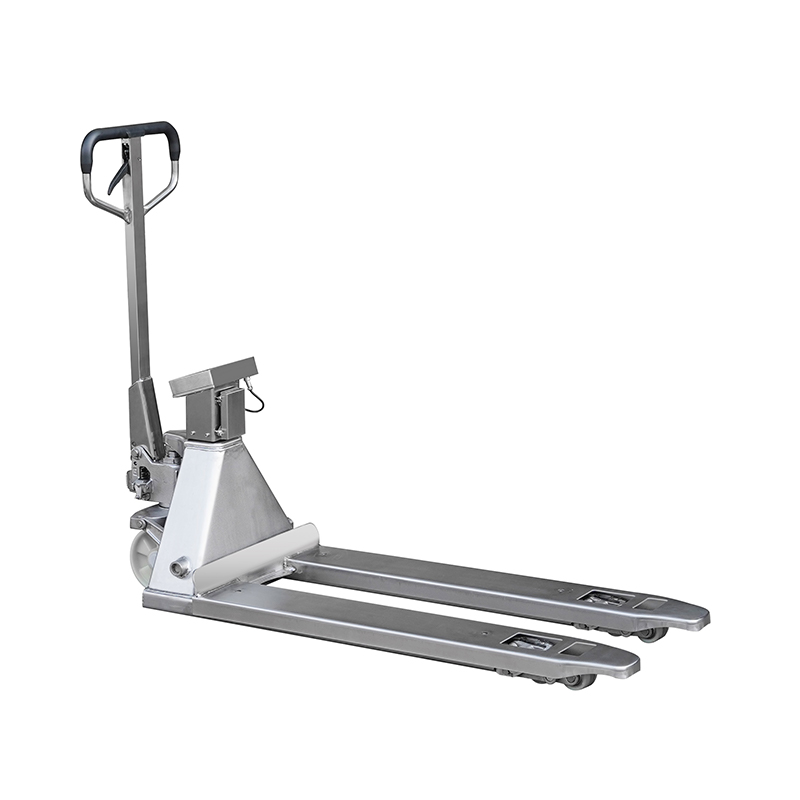

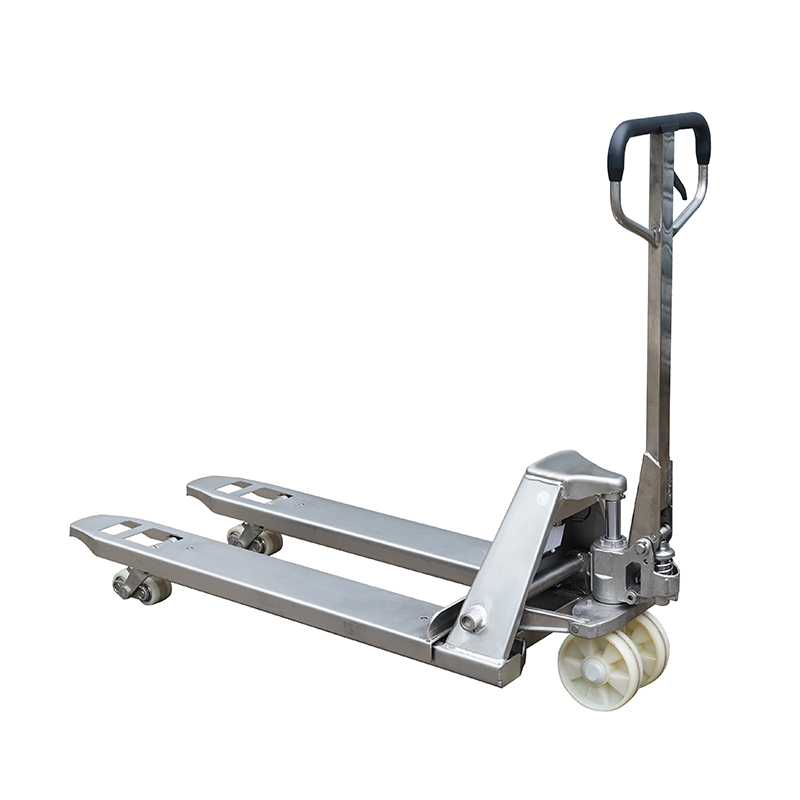

Stainless steel manual weighing pallet truck SCZ-S20-304

Home / Products / Weighing Scale Pallet Truck / Stainless steel manual weighing pallet truck SCZ-S20-304
  • Stainless steel manual weighing pallet truck SCZ-S20-304
  • Stainless steel manual weighing pallet truck SCZ-S20-304
  • Stainless steel manual weighing pallet truck SCZ-S20-304
  • Stainless steel manual weighing pallet truck SCZ-S20-304
  • Stainless steel manual weighing pallet truck SCZ-S20-304
  • Stainless steel manual weighing pallet truck SCZ-S20-304
  • Stainless steel manual weighing pallet truck SCZ-S20-304
  • Stainless steel manual weighing pallet truck SCZ-S20-304
  • Stainless steel manual weighing pallet truck SCZ-S20-304
  • Stainless steel manual weighing pallet truck SCZ-S20-304
  • Stainless steel manual weighing pallet truck SCZ-S20-304
  • Stainless steel manual weighing pallet truck SCZ-S20-304
  • Stainless steel manual weighing pallet truck SCZ-S20-304
  • Stainless steel manual weighing pallet truck SCZ-S20-304
  • Stainless steel manual weighing pallet truck SCZ-S20-304
  • Stainless steel manual weighing pallet truck SCZ-S20-304
  • Stainless steel manual weighing pallet truck SCZ-S20-304
  • Stainless steel manual weighing pallet truck SCZ-S20-304
  • Stainless steel manual weighing pallet truck SCZ-S20-304
  • Stainless steel manual weighing pallet truck SCZ-S20-304
  • Stainless steel manual weighing pallet truck SCZ-S20-304
  • Stainless steel manual weighing pallet truck SCZ-S20-304
  • Product Details
  • FAQ
  • Contact Us




Product Description

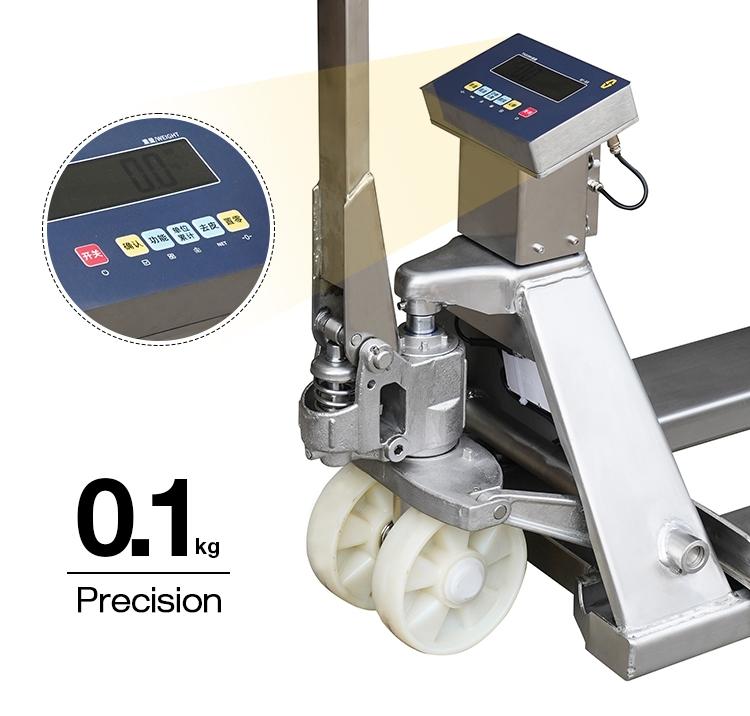

0.1kg precision, more accurate data.
Breaking the industry’s 0.5kg threshold, we pioneered the 0.1kg precision concept and developed it with four ZT-B51000KG high-precision sensors for faster, more sensitive response.



Designed for food/medical-grade use.

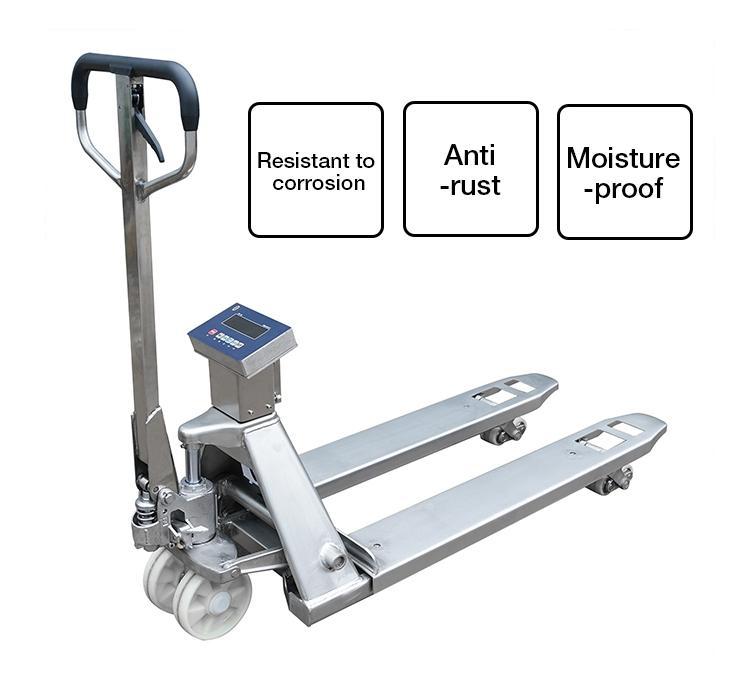

Constructed with 304 stainless steel, the truck is corrosion-resistant and rustproof, suitable for humid, acidic, and alkaline environments.

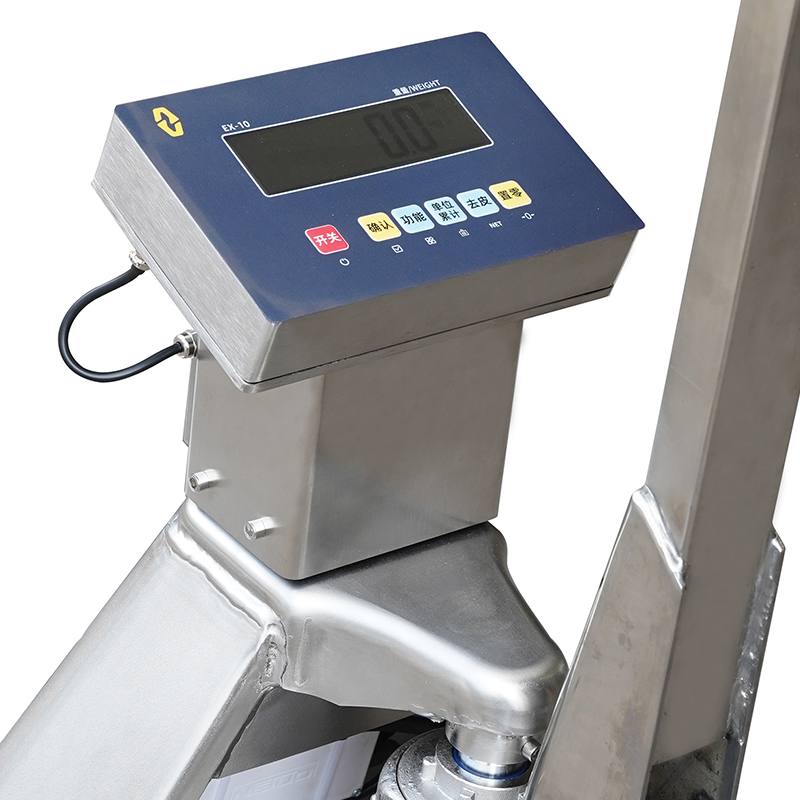

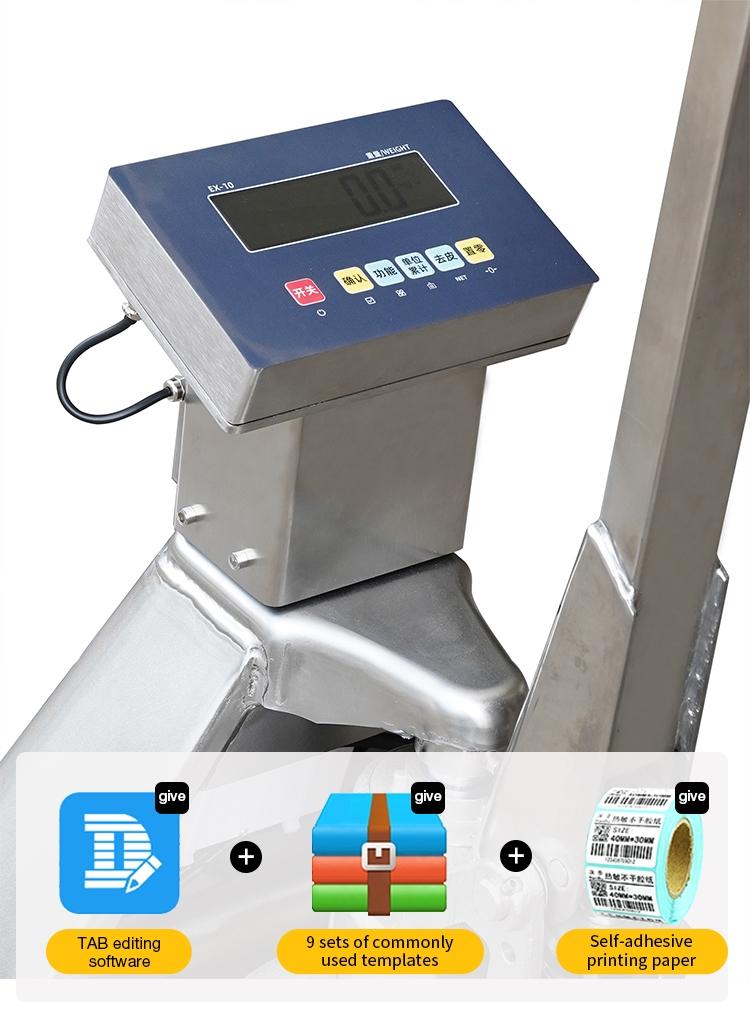

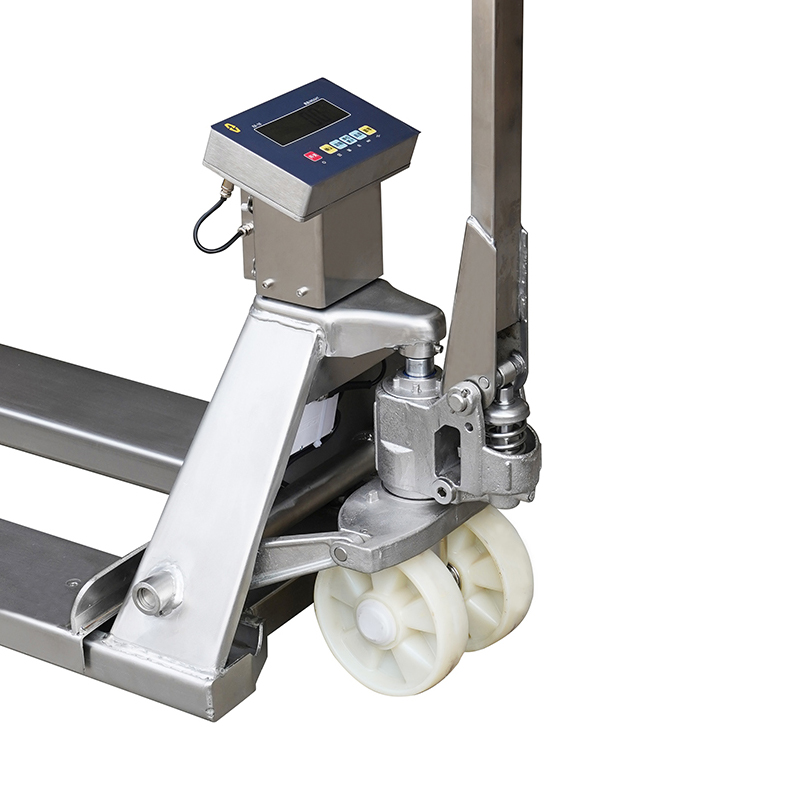

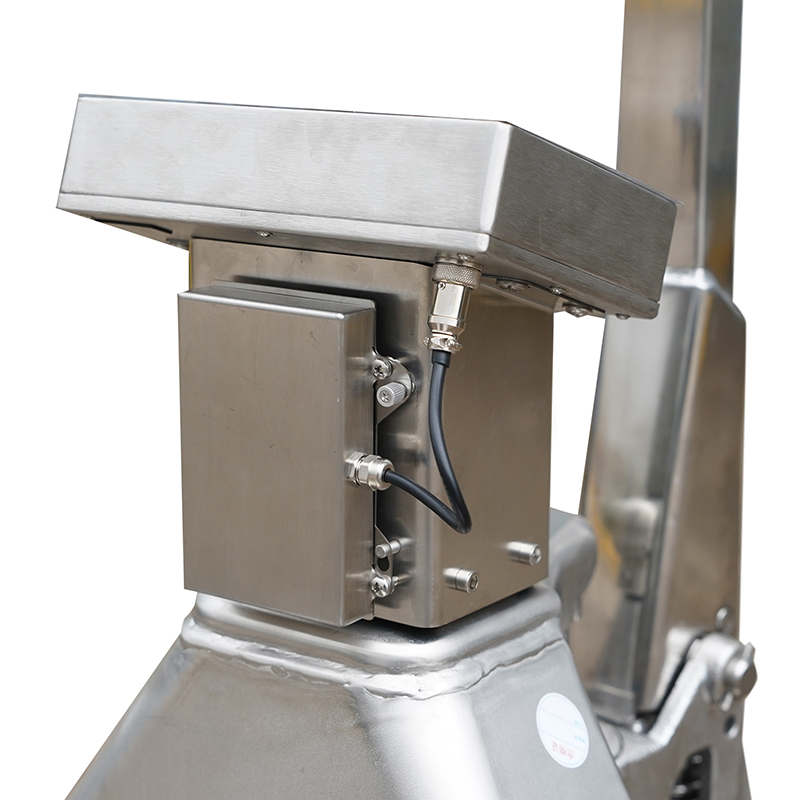

Multi-functional indicator, practical and efficient.
Fully equipped with functions such as counting, label printing, and weighing. Label content is customizable, meeting diverse needs with high efficiency.

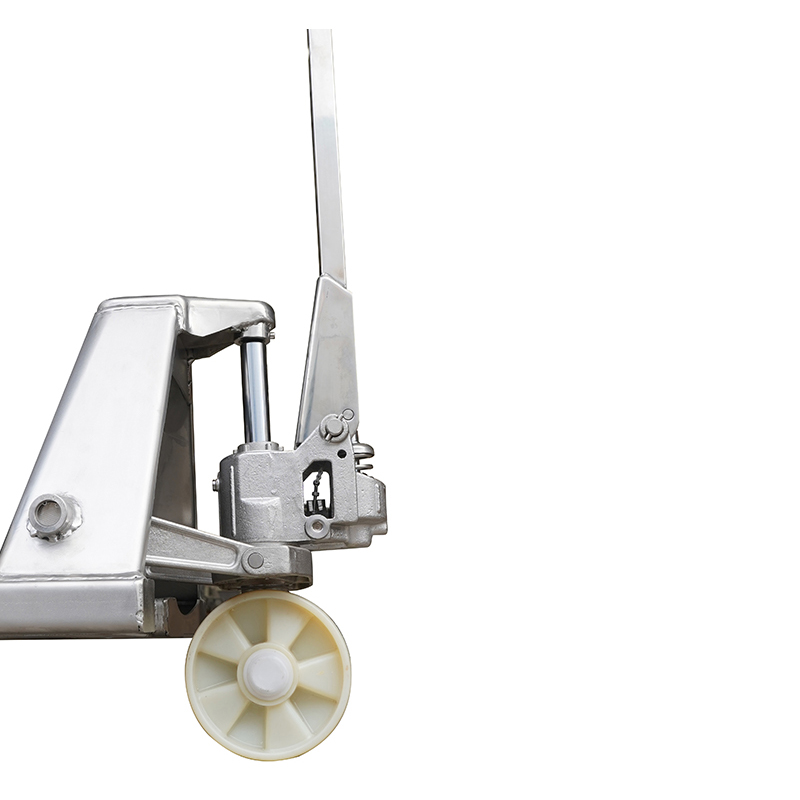

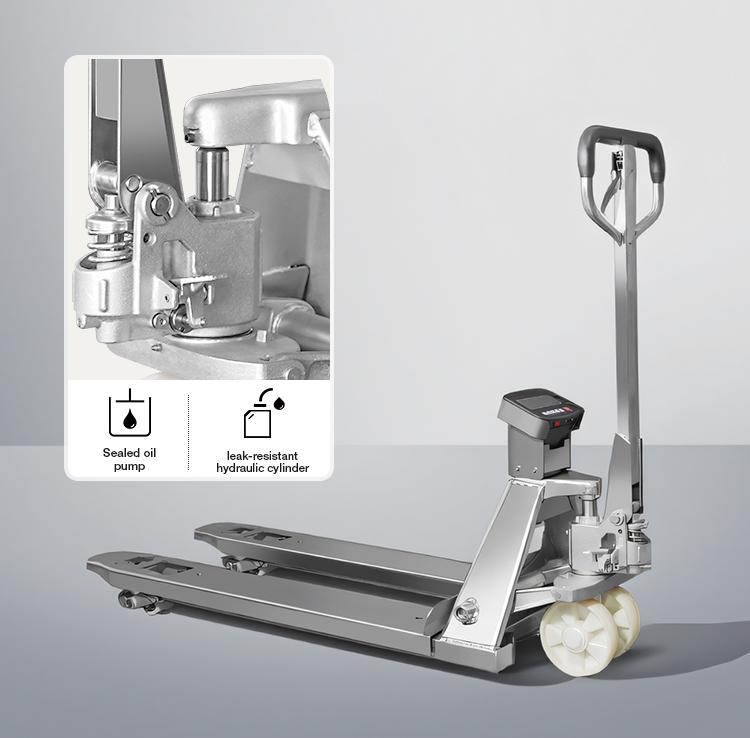

Integrated sealed cylinder, long service life.
Integrated cast oil pump with a sealed hydraulic cylinder, strong load capacity, and no leakage for 5 years.



Product Specification

Manufacturer VIILIFT VIILIFT VIILIFT
Model SBC20-SUS SBC25-SUS SBC30-SUS
Load Capacity (kg) 2000 2500 3000

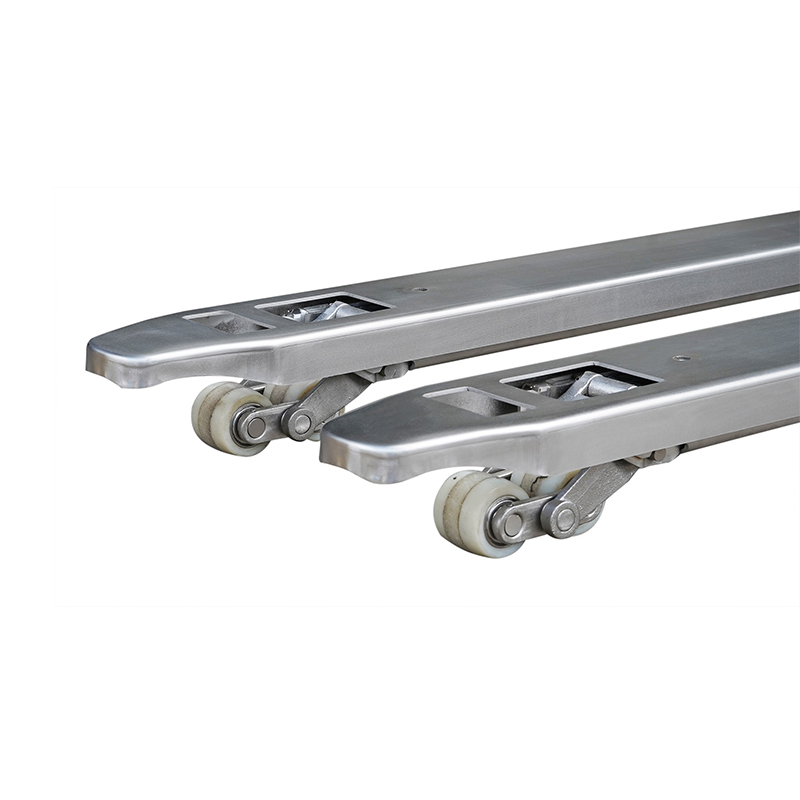

Fork Length (mm) 1150 / 1220 1150 / 1220 1150 / 1220
Fork Width (mm) 150 150 150
Outside Fork Width (mm) 570 / 685 / 700 570 / 685 / 700 570 / 685 / 700
Inside Fork Width (mm) 540 / 655 / 670 540 / 655 / 670 540 / 655 / 670
Lowered Height (mm) 85 85 85
Lifting Height (mm) 195 195 195
Wheel Type PU / Nylon PU / Nylon PU / Nylon
Steel Wheels (mm) 180 180 180
Load Wheels (mm) 150 150 150
Ground Clearance (mm) 30 30 30
Turning Radius (mm) 1250 1250 1300
Power Type Manual Manual Manual
Operation Walkie Walkie Walkie
Overall Length (mm) 1600 1600 1650
Overall Width (mm) 700 700 700
Overall Height (mm) 1200 1200 1200
Weight (kg) 91 95.5 100
HS Code 84271090 84271090 84271090
Packing 6 pcs/pallet 6 pcs/pallet 6 pcs/pallet
Warranty 12 months 12 months 12 months
Customize Accept Accept Accept


Food/medical-grade pallet truck.
